28mm Metal Figure Storage

Original 'optimistic' storage
I previously posted some photos of my 28mm Zulu War armies as stored in Really Useful Boxes (example posted again right). The figures are mounted on steel 2p pieces and the boxes are lined with magnetic plastic. All looked well but when I opened the boxes after wheeling them to my local wargames club, I discovered the figures had ended up in a heap!  Some figures had come off their bases but luckily there was no significant damage.

The 0.55 mm thick magnetic plastic is usually fine for 10mm and 15mm figures on multi-figure bases, but metal 28mm figures are simply too heavy to stay put.

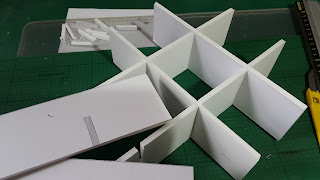

Foamboard dividers under construction
I've since lined other boxes with 0.8 mm magnetic sheet which is significantly stronger. I've also used foamboard to create internal dividers. I approached this in a similar way  to using foamboard for buildings.

First step was to measure the internal dimensions of the RUBs. I then played around with a design in CorelDraw. After some thought I decided to  go with four figures per compartment. This accommodates the regular infantry who have protruding rifles and bayonets and which are convenient to have in pairs.

Better protected than before
After printing the templates using an A3 printer, I used SprayMount to fix them onto 5mm foamboard, before cutting them out with a scalpel. The design is very simple. There are two long slats crossed by four short slats. Slots are cut in each set, up and down respectively, so they slot together. This is then placed loosely in the RUB with some sheets of bubblewrap above. Next time I will make the dividers a little higher so they are flush with the lid.

I will also be dropping bubblewrap pads into each compartment on top of the figures.

There may be some movement in transit, but the threat of damage should be reduced.
